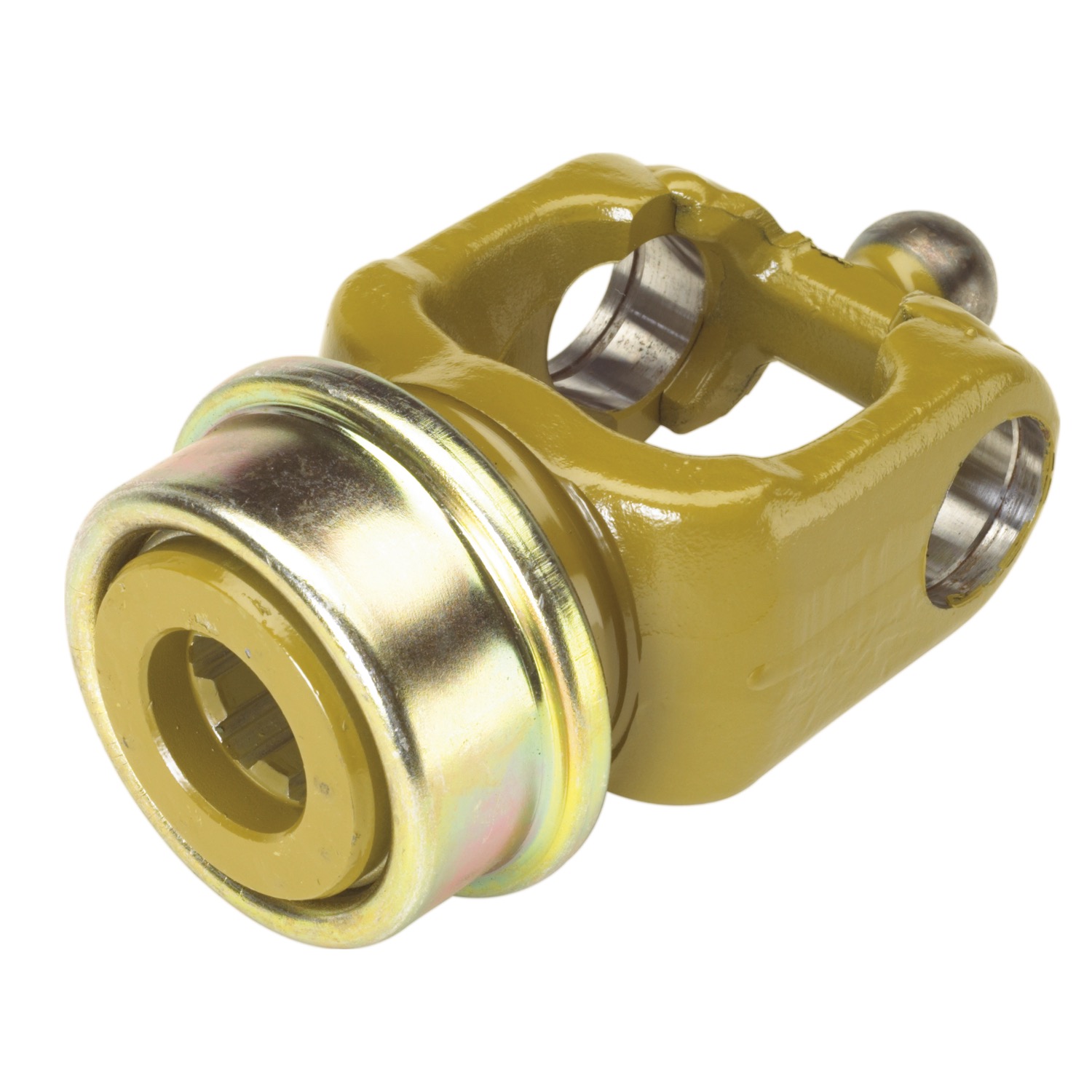

Walterscheid® Quick-disconnect yoke ASG 2480 - 1135603

Product number: 1135603

ASG 2480 ZNP1 3/4-20 AS-C L132 KPL

Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability.
Cross references, designation of type by vehicle manufacturers or competitors are for guidance only.
Check that the part is correct for the application before fitting.

Original Walterscheid spare part

Product advantages

The Walterscheid diamond has been a guarantee of quality and safety for decades.
You can rely on their good reputation. It meets your requirements.

The scope of delivery includes 1x Wide-Angle connecting yoke series W with slide collar.

Type: ASG
Size: 2480
Type: ASG
B (mm): 86
Manufacturer: Walterscheid
d (mm): 32
A-Profile: 1 ¾‘‘ (20)
L (mm): 132
D5 (mm): 27
Länge Augenb.-Ende: 132.00
Anschluss-PR: ZNP1 3/4-20
Distance from drilling end: 38
Werkstoff: SIEHE STL
Arretierung/Bohrung: AS-C
Abstand Bohr.-Mitte: 0.00
Profile length: 76.00
Ø ü.Nut: 0.00
Rohling-/Gabel-SNR: 134574
Drawing: 35.84.112M

ass: 0 sim: 0 croo: 0
