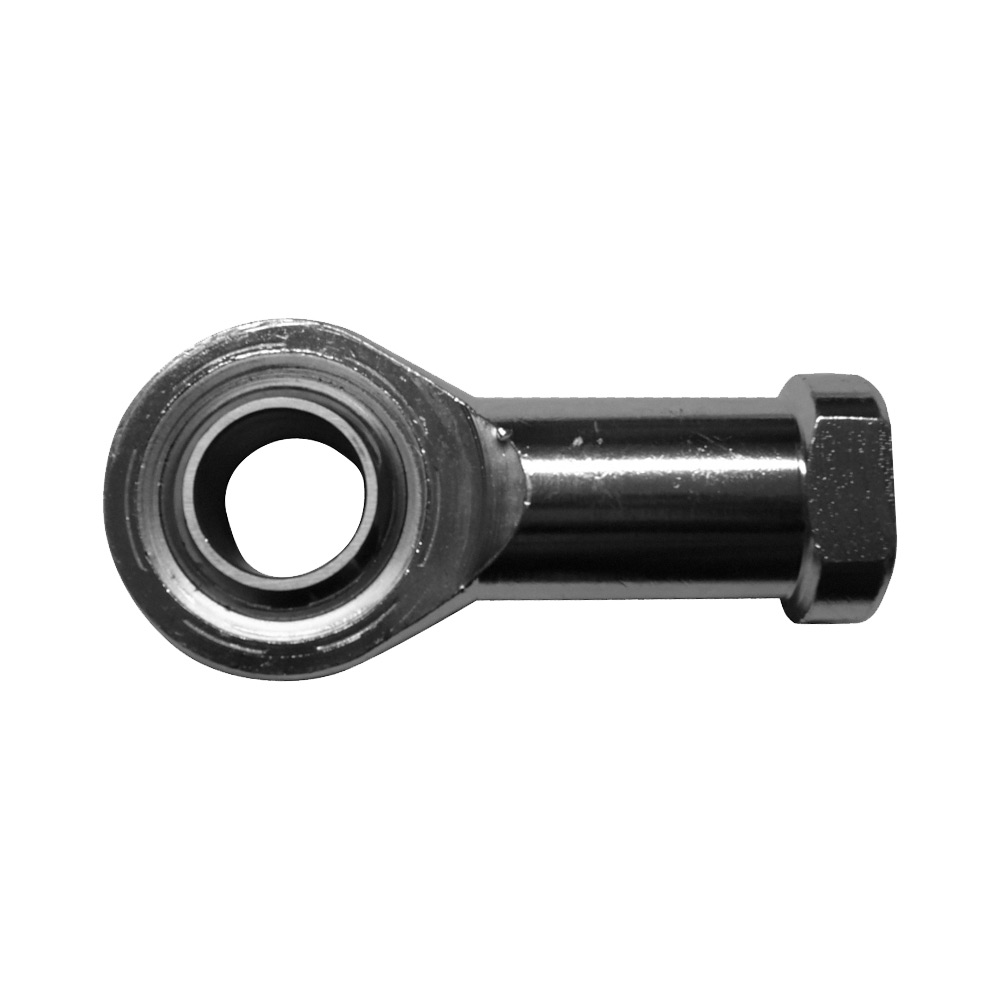

Bearing SI30 – 8004838

Product number: 8004838

D=30x70x37 mm M30x2x50 IG

Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability.
Cross references, designation of type by vehicle manufacturers or competitors are for guidance only.
Check that the part is correct for the application before fitting.

Forced steering components are used to transfer steering forces between the towing vehicle and trailer. The central element for connection to the handlebar of the trailer can be a 50 mm ball or a 30 mm pin. A spherical cap 50 in accordance with ISO 26402 or a spherical plain bearing 30 in accordance with DIN ISO 12240-4 is mounted as a counterpart on the piston rods of the steering cylinders of the forced steering systems.

Product advantages

Fitted for the Walterscheid Easy Fit Steering System

The scope of delivery includes 1x Bearing SI30.

All components are designed specifically for the device and performance and it is not allowed to exchange for components other than those prescribed by Walterscheid. Damaged or missing parts can only replace with original Walterscheid parts and retrofit them in accordance with regulations and after consultation with Walterscheid.
The assignment, assembly and use of this model requires a detailed preliminary examination by qualified personnel. It is imperative to check the existing facilities and all of the machinery and equipment for their suitability for attachment. In particular, the characteristic values (e.g. vertical and pulling loads or torques) and the geometries (e.g. dimensions, screw hole patterns, free spaces) must be observed. Depending on the existing equipment of the machine, this can result in the use or purchase of additional components. The content of operating instructions must be observed.
