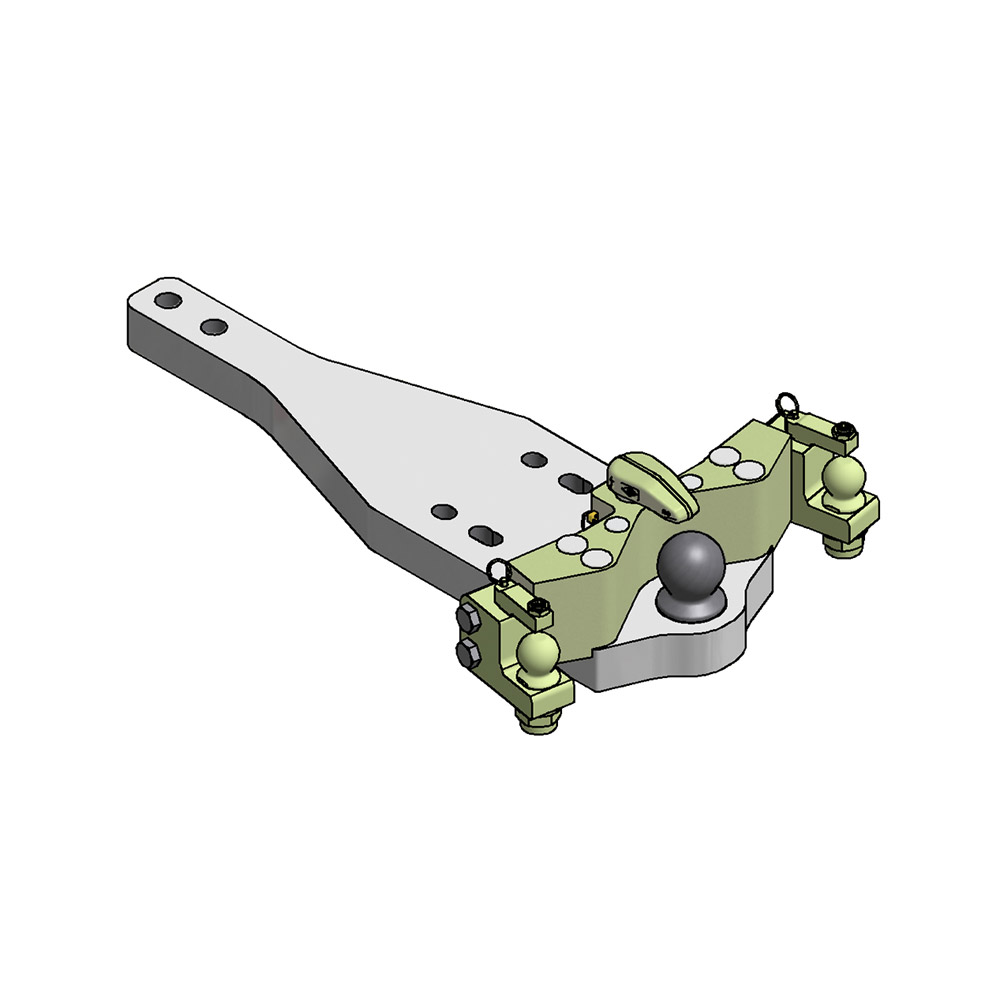

Walterscheid® Insert of Drawbar KBa8301XZWL50 – 8005420

Product number: 8005420

KK80 2/75/857/30/255/2/147/60 mm

Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability.
Cross references, designation of type by vehicle manufacturers or competitors are for guidance only.
Check that the part is correct for the application before fitting.

This product is an insert of drawbar. The ball coupling 80 dimensions and field of application complying with ISO 24347, VO (EU) 2015/208 and regulation UN ECE R147, class a80. In its normal state, the device is in coupled and locked position. Furthermore, it is suitable for the connection to coupling heads 80 according to ISO 24347, respectively UN ECE R147, class b80. The range of application extends to the use on agricultural or forestry vehicles.

If required, this model can also be delivered without forced steering components at the corresponding minimum price.

Product advantages

Usable for Easy Fit Steering System
Fix integrated ball D=80 mm
Ball80 can be replaced up to 2 times in case of wear
Catch device with centering function
Catch device and retainer are forged
Retainer tool-free adjustable

Insert of Drawbar KBa8301X

The scope of delivery includes 1x Insert of drawbar KBa8301XZWL50.

Suitable for connection to ball-type trailer shanks 80 according to ISO 24347.
The ball D=80 mm can be replaced (by authorized workshops) up to 2 times.

German Approval No.: M9873 | Approval No.: e1*2009/144*2013/8*0390 | e1*2015/208*2015/208 ND*00298

All components are designed specifically for the device and performance and it is not allowed to exchange for components other than those prescribed by Walterscheid. Damaged or missing parts can only replace with original Walterscheid parts and retrofit them in accordance with regulations and after consultation with Walterscheid.
The assignment, assembly and use of this model requires a detailed preliminary examination by qualified personnel. It is imperative to check the existing facilities and all of the machinery and equipment for their suitability for attachment. In particular, the characteristic values (e.g. vertical and pulling loads or torques) and the geometries (e.g. dimensions, screw hole patterns, free spaces) must be observed. Depending on the existing equipment of the machine, this can result in the use or purchase of additional components. The content of operating instructions must be observed.
