Walterscheid® Coupling Clevis Type KU200/G150 – 8003692

Product number: 8003692

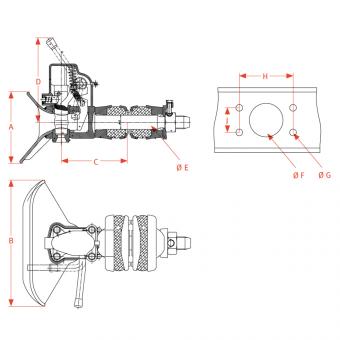

KU200 HD=160x100/21 mm

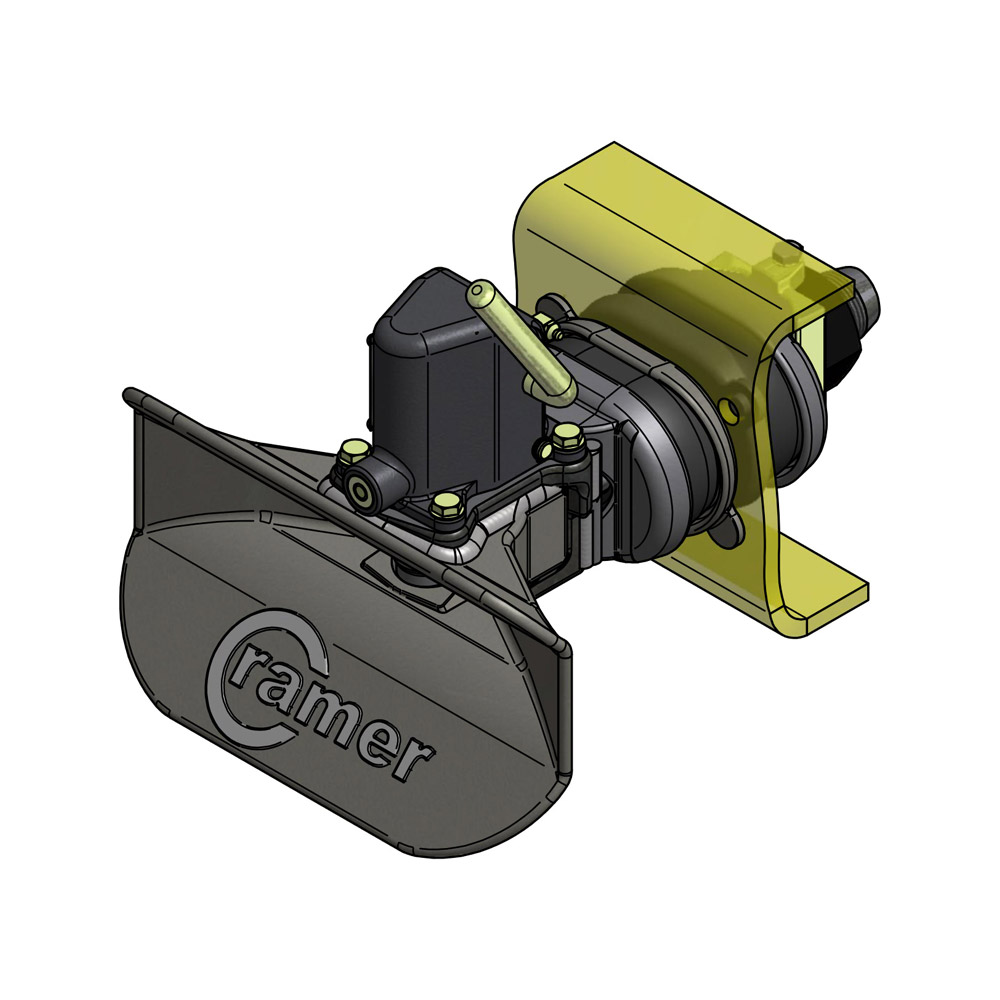

Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability.
Cross references, designation of type by vehicle manufacturers or competitors are for guidance only.
Check that the part is correct for the application before fitting.

Discontinued Model. Limited availability. Successor product please inquire by e-mail. Please use button "Questions about product" on the right.

This product is a non-automatic trailer coupling, complies with DIN 74054 (ISO 8755). In normal position is the coupling in closed and locked position. In this version it has a pin D=38 mm.

Product advantages

Forged model

The scope of delivery includes 1x coupling clevis type KU200/G150.

Approval No.: e1*94/20*1181 | E1 55R-012794

All components are designed specifically for the device and performance and it is not allowed to exchange for components other than those prescribed by Walterscheid. Damaged or missing parts can only replace with original Walterscheid parts and retrofit them in accordance with regulations and after consultation with Walterscheid.
The assignment, assembly and use of this model requires a detailed preliminary examination by qualified personnel. It is imperative to check the existing facilities and all of the machinery and equipment for their suitability for attachment. In particular, the characteristic values (e.g. vertical and pulling loads or torques) and the geometries (e.g. dimensions, screw hole patterns, free spaces) must be observed. Depending on the existing equipment of the machine, this can result in the use or purchase of additional components. The content of operating instructions must be observed.

Suitable for towing eyes according to DIN 74054 (ISO 8755).
