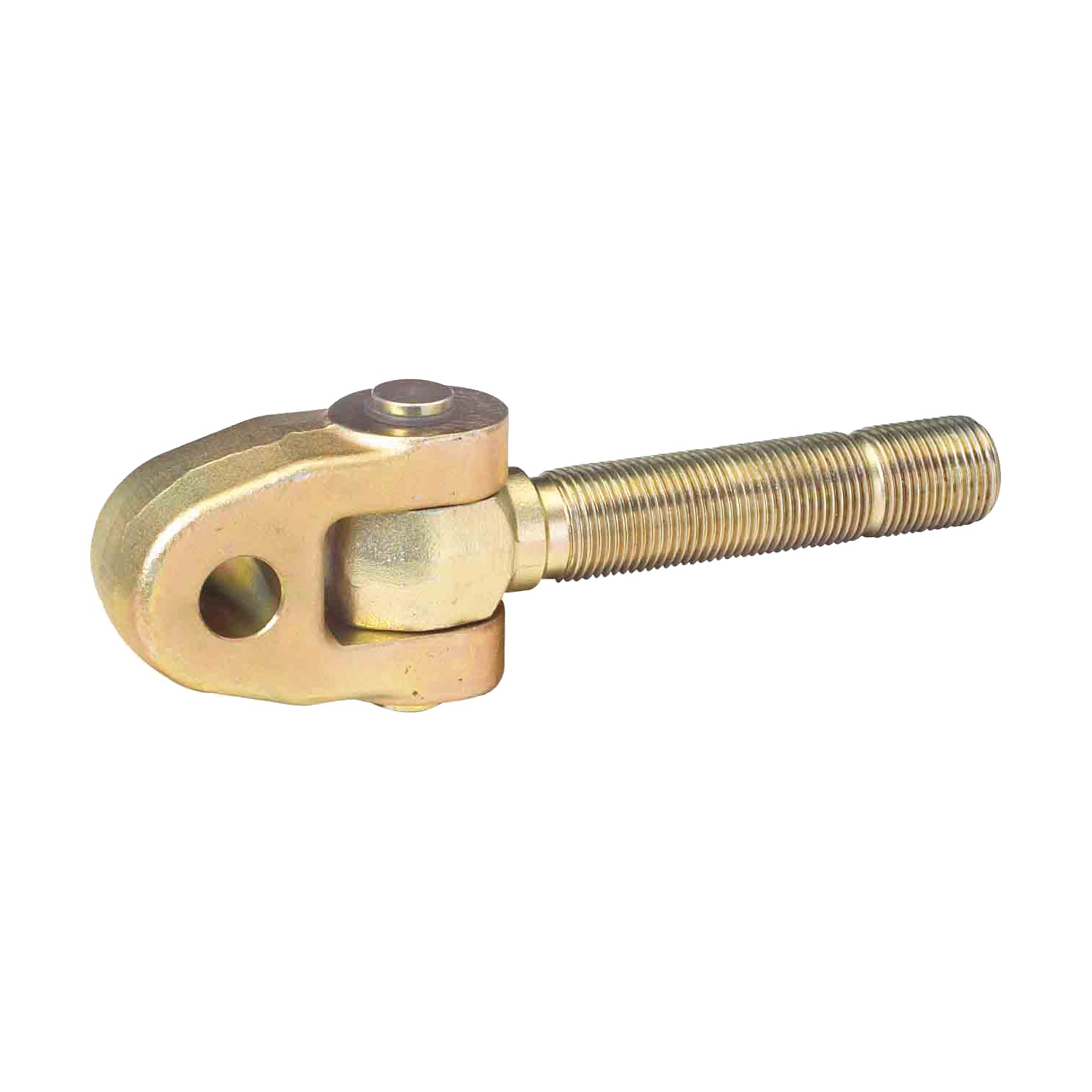

Walterscheid® Yoke rod end CAT.3 32 - 1083632

Product number: 1083632

CAT.3 B32-50 L203 M36X3

Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability.
Cross references, designation of type by vehicle manufacturers or competitors are for guidance only.
Check that the part is correct for the application before fitting.

Original Walterscheid spare part

Product advantages

The Walterscheid diamond has been a guarantee of quality and safety for decades.
You can rely on their good reputation. It meets your requirements.

The scope of delivery includes 1x Fork end.

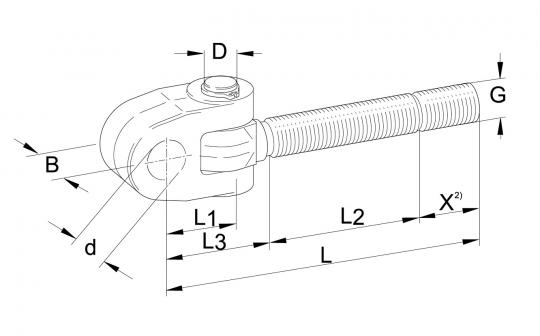

Type: Cat. 3
B (mm): 50
Manufacturer: Walterscheid
d (mm): 32
L (mm): 203
L1 (mm): 63
L2 (mm): 65
L3 (mm): 138
D (mm): 25
X (mm): 55
G: M36x3
