Walterscheid® Retainer Set KK50 – 8004730

Product number: 8004730

50-53x75 mm

Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability.
Cross references, designation of type by vehicle manufacturers or competitors are for guidance only.
Check that the part is correct for the application before fitting.

This product is a retainer set suitable for connection with a calotte D=50 mm (ISO 26402). The range of application extends to the use on agricultural or forestry trailers.

Product advantages

Forged
Maximum space on calottes to move up to 36°
Inside furrows ensure optimal lubrication
Created for heavy duty work

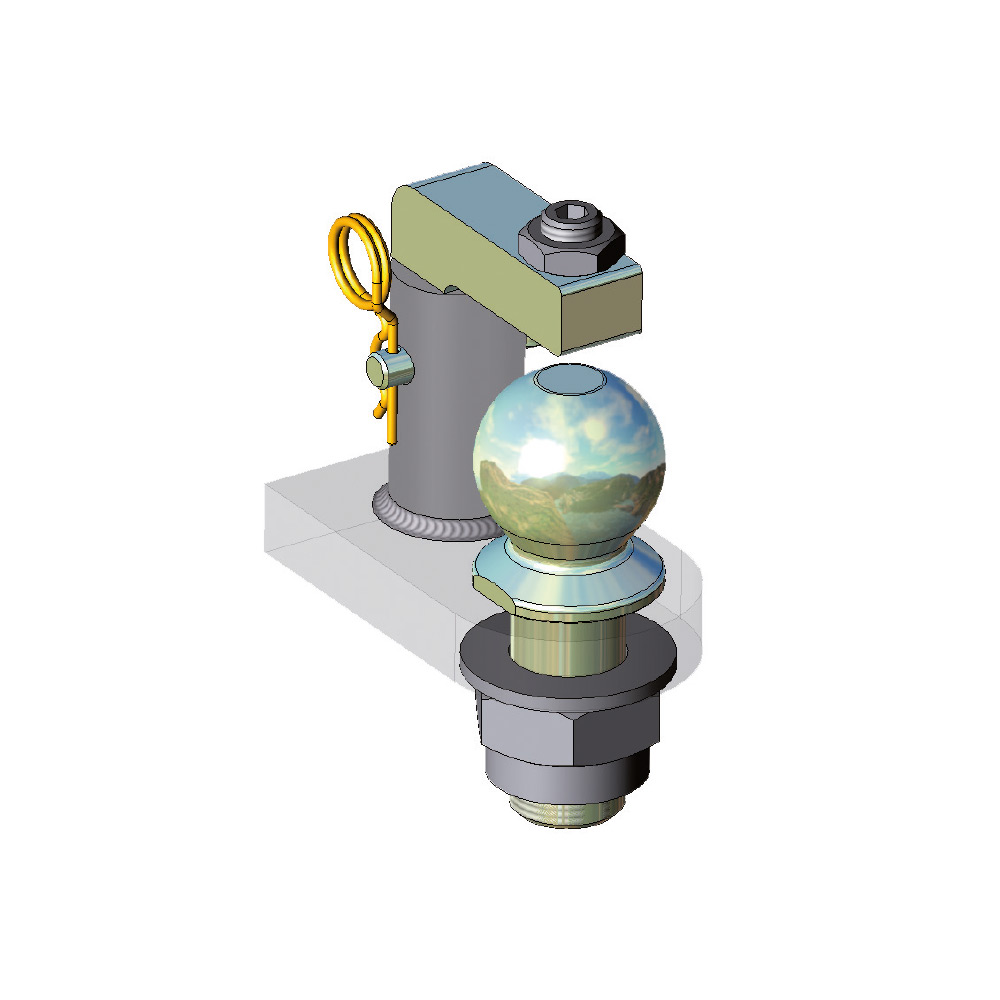

The scope of delivery includes 1x Retainer set KK50 consisting of ball 50 (order number: 8004738), hold-down bearing (order number: 8004776), hold-down 50H with adjusting screw
nut (order number: 8002125) and locking pin (order number: 8004830).

Power steering system ZWL50 according to ISO 26402.

Before welding it is recommended to preheat the plate to 200°C.

When installing the ball kit in a carrying device, the relevant regulations (e.g. accident prevention regulations for vehicles) and the installation guidelines of the vehicle manufacturer must be observed! The installation of the ball kit must be carried out exclusively by an authorized specialist workshop.

All components are designed specifically for the device and performance and it is not allowed to exchange for components other than those prescribed by Walterscheid. Damaged or missing parts can only replace with original Walterscheid parts and retrofit them in accordance with regulations and after consultation with Walterscheid.
The assignment, assembly and use of this model requires a detailed preliminary examination by qualified personnel. It is imperative to check the existing facilities and all of the machinery and equipment for their suitability for attachment. In particular, the characteristic values (e.g. vertical and pulling loads or torques) and the geometries (e.g. dimensions, screw hole patterns, free spaces) must be observed. Depending on the existing equipment of the machine, this can result in the use or purchase of additional components. The content of operating instructions must be observed.

Type of connection: Ball 50
Model: KK50
Norm DIN/ISO: ISO 26402
AP Code: MP-0
AP-Code: MP-0
Data sheet: 6.05.010
Colour: Cr6-free passivated
