Walterscheid® Calotte ZKK50-M30X2 – 8004721

Product number: 8004721

ZKK50-M30X2

Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability.
Cross references, designation of type by vehicle manufacturers or competitors are for guidance only.
Check that the part is correct for the application before fitting.

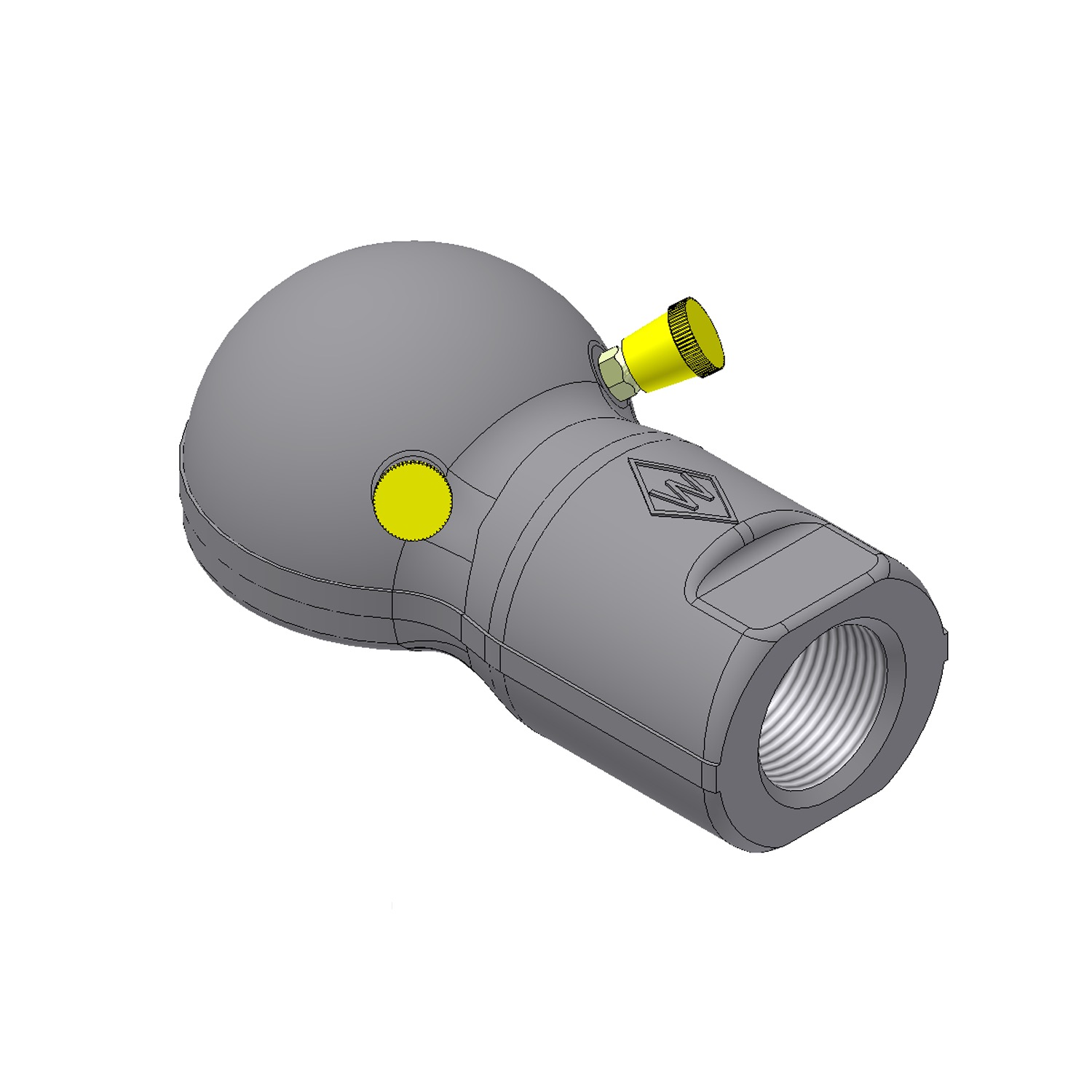

This product is a calotte suitable for connection with a coupling ball D=50 mm (ISO 26402). The range of application extends to the use on agricultural or forestry trailers.
Product advantages

Forged
Maximum space on calottes to move up to 36°
Inside furrows ensure optimal lubrication
Created for heavy duty work

The scope of delivery includes 1x calotte ZKK50-M30X2.

Power steering system ZWL50 according to ISO 26402.

When fitting the ZKK50-M30x2 to the freely rotatable piston rods of the steering cylinders, the anti-twist device 50-00-5 (order number: 8005451) can be used.

All components are designed specifically for the device and performance and it is not allowed to exchange for components other than those prescribed by Walterscheid. Damaged or missing parts can only replace with original Walterscheid parts and retrofit them in accordance with regulations and after consultation with Walterscheid.
The assignment, assembly and use of this model requires a detailed preliminary examination by qualified personnel. It is imperative to check the existing facilities and all of the machinery and equipment for their suitability for attachment. In particular, the characteristic values (e.g. vertical and pulling loads or torques) and the geometries (e.g. dimensions, screw hole patterns, free spaces) must be observed. Depending on the existing equipment of the machine, this can result in the use or purchase of additional components. The content of operating instructions must be observed.
