Walterscheid® Insert of Drawbar PBa5303L – 8005131

Product number: 8005131

P50 1/0/545/30,5/170/1/111,5/50 mm

Similar to illustration. Use products only for their intended use. Content is subject to change without notice. Further sizes and combinations may be available: contact us for availability.
Cross references, designation of type by vehicle manufacturers or competitors are for guidance only.
Check that the part is correct for the application before fitting.

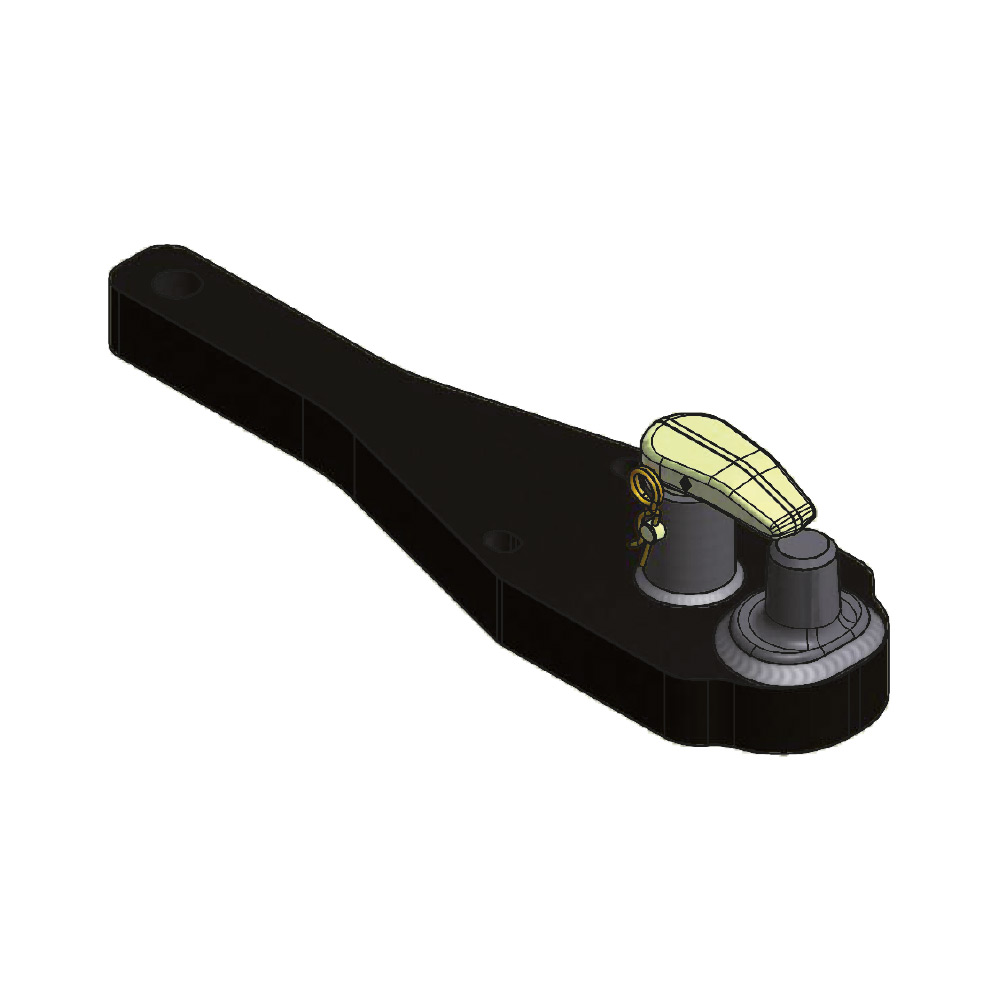

This product is an insert of drawbar with swivel hook D=46 mm. The piton-type coupling dimensions and field of application complying with ISO 6489-4, VO (EU) 2015/208 and regulation UN ECE R147, class h. In its normal state, the device is in coupled and locked position. The range of application extends to the use on agricultural or forestry vehicles, self-propelled work machines or trailers.

Product advantages

Made of forged steel

Insert of Drawbar PBa5303

The scope of delivery includes 1x Insert of drawbar PBa5303L.

Suitable for towing eyes according to DIN 9678 (ISO 5692-1) / ISO 20019.

Approval No.: e1*2015/208*2018/829ND*00694

All components are designed specifically for the device and performance and it is not allowed to exchange for components other than those prescribed by Walterscheid. Damaged or missing parts can only replace with original Walterscheid parts and retrofit them in accordance with regulations and after consultation with Walterscheid.
The assignment, assembly and use of this model requires a detailed preliminary examination by qualified personnel. It is imperative to check the existing facilities and all of the machinery and equipment for their suitability for attachment. In particular, the characteristic values (e.g. vertical and pulling loads or torques) and the geometries (e.g. dimensions, screw hole patterns, free spaces) must be observed. Depending on the existing equipment of the machine, this can result in the use or purchase of additional components. The content of operating instructions must be observed.
