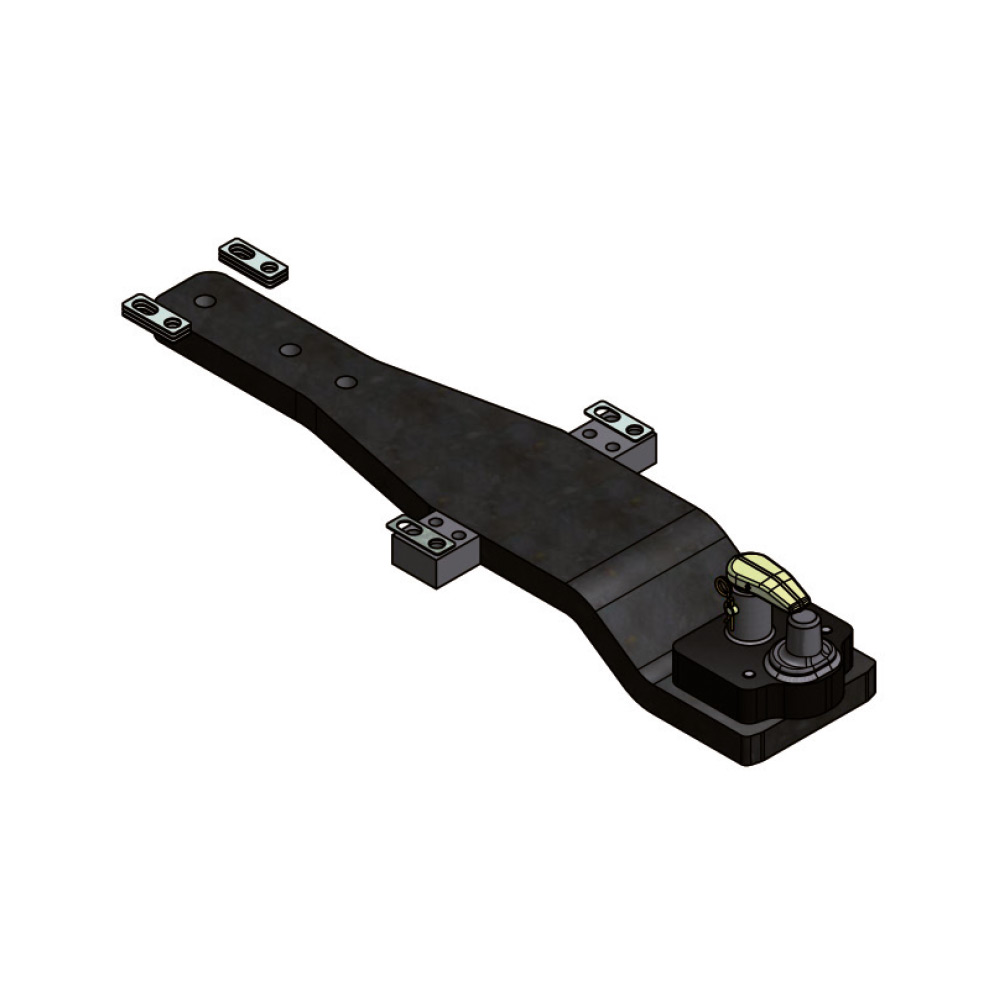

This product is an insert of drawbar with swivel hook D=46 mm. The piton-type coupling dimensions and field of application complying with ISO 6489-4, VO (EU) 2015/208 and regulation UN ECE R147, class h. In its normal state, the device is in coupled and locked position. The range of application extends to the use on agricultural or forestry vehicles, self-propelled work machines or trailers.
Product advantages
Made of forged steel
The scope of delivery includes 1x Insert of drawbar PBa5344A with single homologation, 8x distance plate (order number: 8004814) and 2x spacer block (order number: 8004815).
Suitable for towing eyes according to DIN 9678 (ISO 5692-1) / ISO 20019.
If required, the hole D can be extended from 27.5mm to 32.25mm.
Alternatively the hole D can be reduced from 32.25mm to 27,5 mm using a bush (order number: 8005562).
For adjustable supports with rail size W = 389/32 / 25mm please order also insert of drawbar support (order number: 8005035).
For adjustable supports with rail size W = 329/32 / 25mm please order also insert of drawbar support (order number: 8004808 or 8005108).
If required, please order adjustable drawbar support (order number: 8004812) for screw connection M16 or adjustable drawbar support (order number: 8004813) for screw connection M20.
Instructions for certificates: Installation of coupling parts must be checked and approved by an recognized expert
according to section 4 of Annex VIIIb to the StVZO based at the information of delivered certificates
All components are designed specifically for the device and performance and it is not allowed to exchange for components other than those prescribed by Walterscheid. Damaged or missing parts can only replace with original Walterscheid parts and retrofit them in accordance with regulations and after consultation with Walterscheid.
The assignment, assembly and use of this model requires a detailed preliminary examination by qualified personnel. It is imperative to check the existing facilities and all of the machinery and equipment for their suitability for attachment. In particular, the characteristic values (e.g. vertical and pulling loads or torques) and the geometries (e.g. dimensions, screw hole patterns, free spaces) must be observed. Depending on the existing equipment of the machine, this can result in the use or purchase of additional components. The content of operating instructions must be observed.
- Type of connection
- Piton 50
- Model
- PBa5344A
- Flange dimension
- HD=140x100/17 mm
- Vertical load (daN)
- 3000
- D-Value (kN)
- 89,3
- Norm DIN/ISO
- DIN 9678 (ISO 5692-1) | ISO 5692 | ISO 20019
- Single homologation
- Single homologation
- Approval
- Single homologation
- AP Code
- N-TP-P-CG0-GK-SH-0/55
- A (mm)
- 1090
- B (mm)
- 240
- C (mm)
- 45
- D (mm)
- 27,5
- F1 (mm)
- 155
- F2 (mm)
- 102
- F3 (mm)
- 42
- F4 (mm)
- 405
- G2 (mm)
- 360
- AP-Code
- N-TP-P-CG0-GK-SH-0/55
- G1 (mm)
- 88
- Data sheet
- 4.03.106
- Colour
- John Deere green
